시설 현황 안내

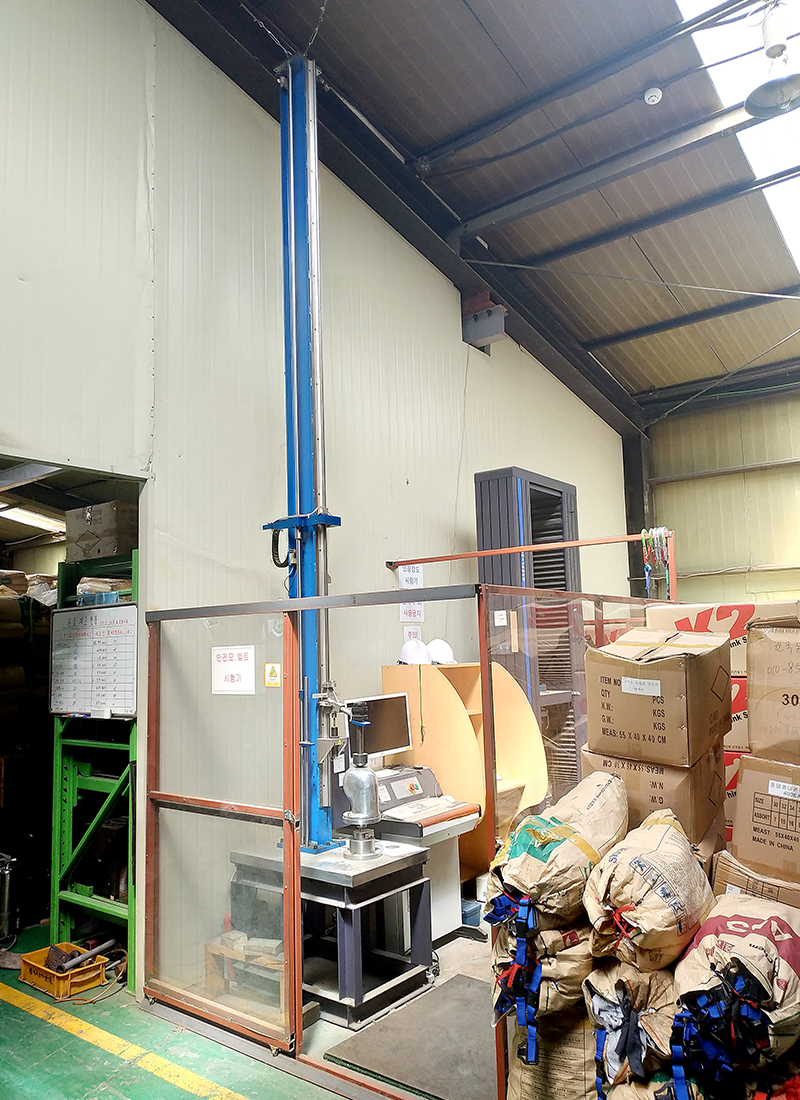

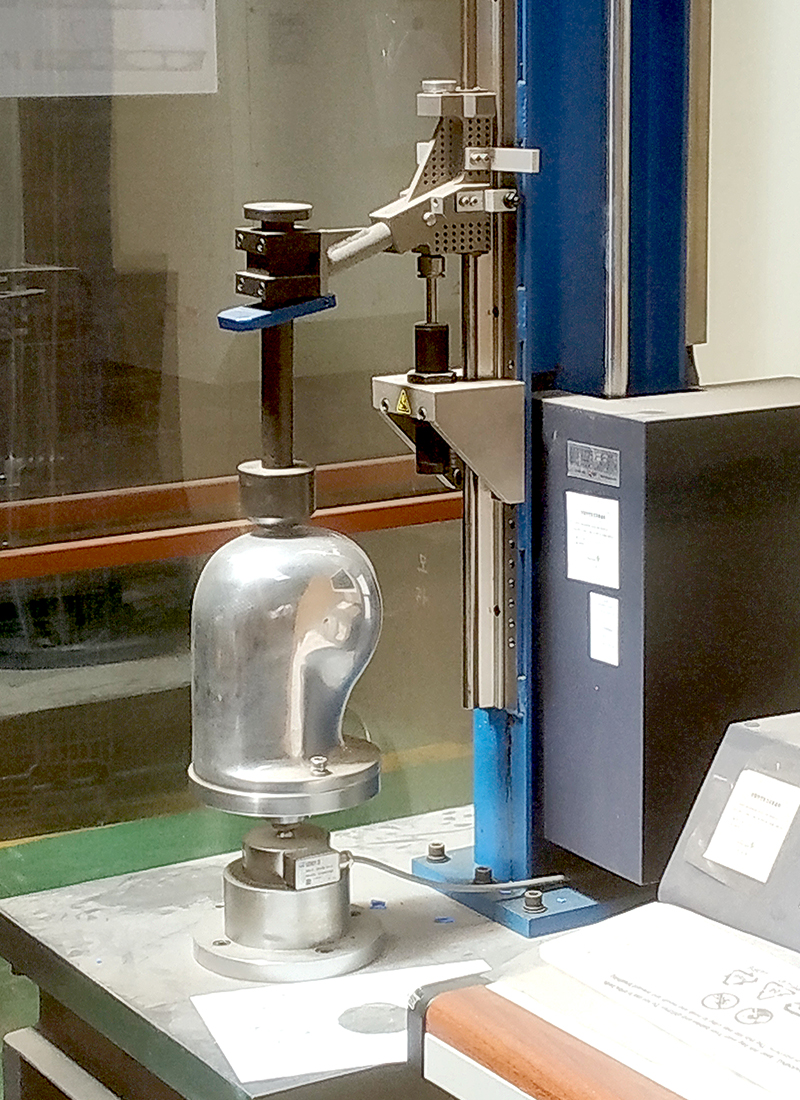

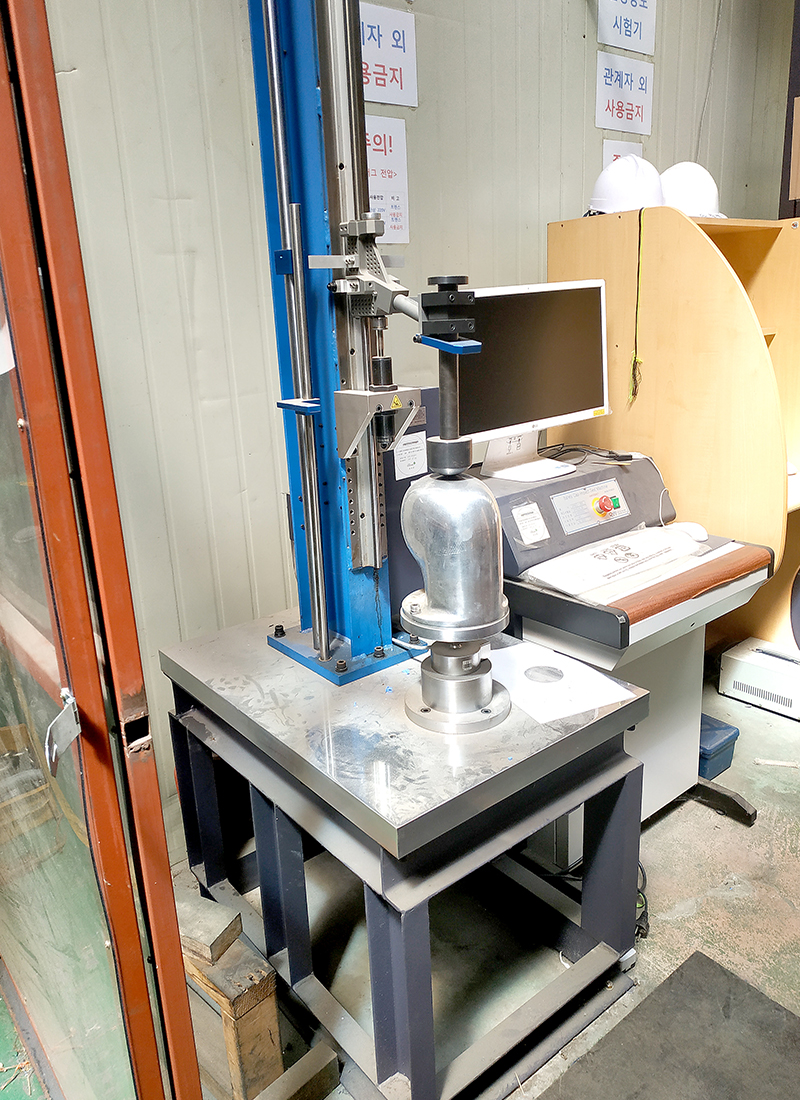

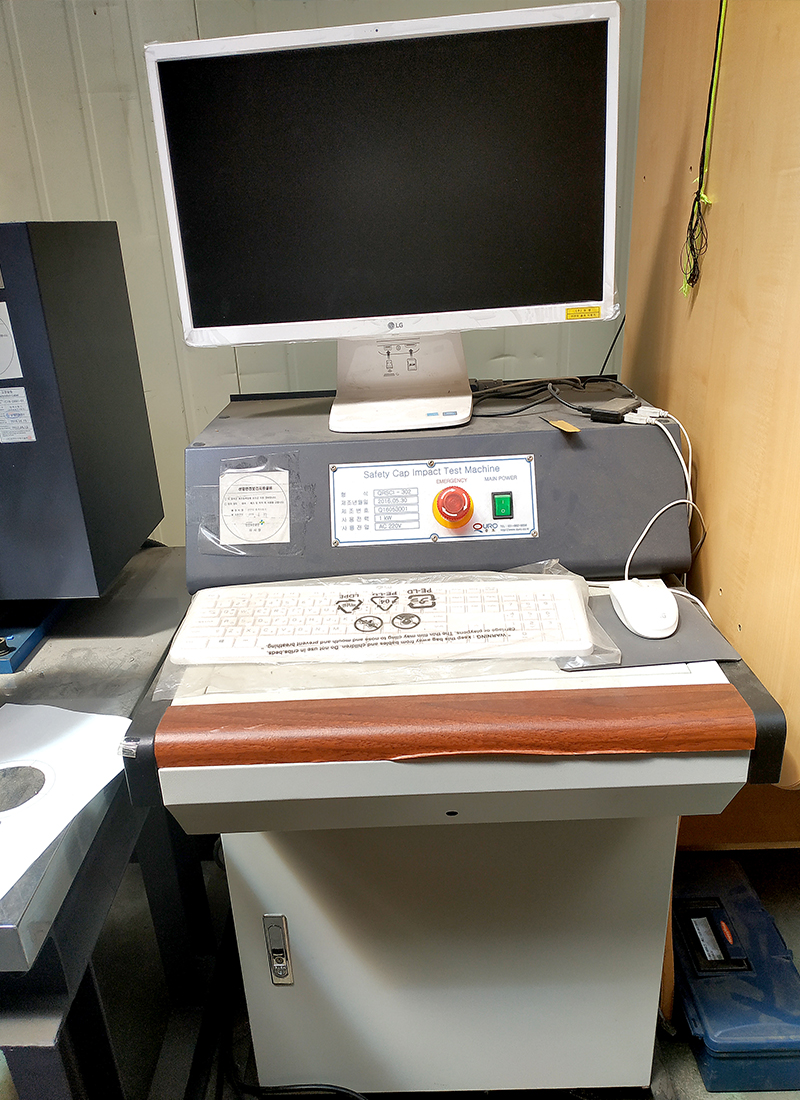

Model	모델	QRSHI-401
Falling Weight Capacity(kg)	낙하추	Absorption weight 5 , penetration weight 1.5
Sensor	센서	load cell 20 kN, Acceleration sensor 2000g
Operation Type	작동방법	30m/min Servo motor
Test Height	시험높이	3500mm
Test Height Control	시험높이 컨트롤	±0.1mm
Speed Sensor	속도센서	0.0001㎲
Test Control	컨트롤러	Touch panel, computer
Load Dimension (mm)	하중부크기	600 × 700 × 4500
Power	사용전원	1P, AC 220V, 60Hz
Accessory	악세서리	Head model5 pice
Weight (kg)	질량	1100

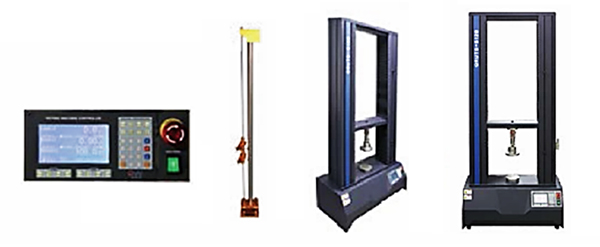

MODEL	모델	QRUTS-S105	QRUTS-S110	QRUTS-S130	QRUTS-S150	QRUTS-S1100	QRUTS-S1300
MODEL	모델	QRUTS-S105H	QRUTS-S110H	QRUTS-S130H	QRUTS-S150H	QRUTS-S1100H	QRUTS-S1300H
Max Load Capcity(kN)	최대하중	0.5	10	30	50	100	300
Min Load Capcity(N)	최소하중	0.1	0.2	0.6	0.1	2	6
Accuracy	정밀도	Within ± 0.5% of the indicated load
Loading Method	자동방법	LCD Screen, Computer AC Servo Motor and ball Screw
Test Speed	시험 속도	0.1 - 500 mm/min
Test Control	시험	Load, Stroke, Strain
Load Sensor	하중센서	Load Cell
Testing Speed Set	시험 속도 조절	Computer Auto Return, Auto Zero, Auto Rang, Auto Test
Safety Device	안전장치	Over Load Limit Switch, Micro Limit Switch
